EHouse and n. 4 transformation cabins for Photovoltaic plant
Macchiareddu (Italy)
Country
Year
Location
Solutions
Products
Description
Project realised in Macchiareddu, within a photovoltaic park in Sardinia in one of the most important industrial hubs. This is an area of development increasingly powered by alternative energy, where CR Technology Systems has already been present for some years in the realisation of green projects in the area.

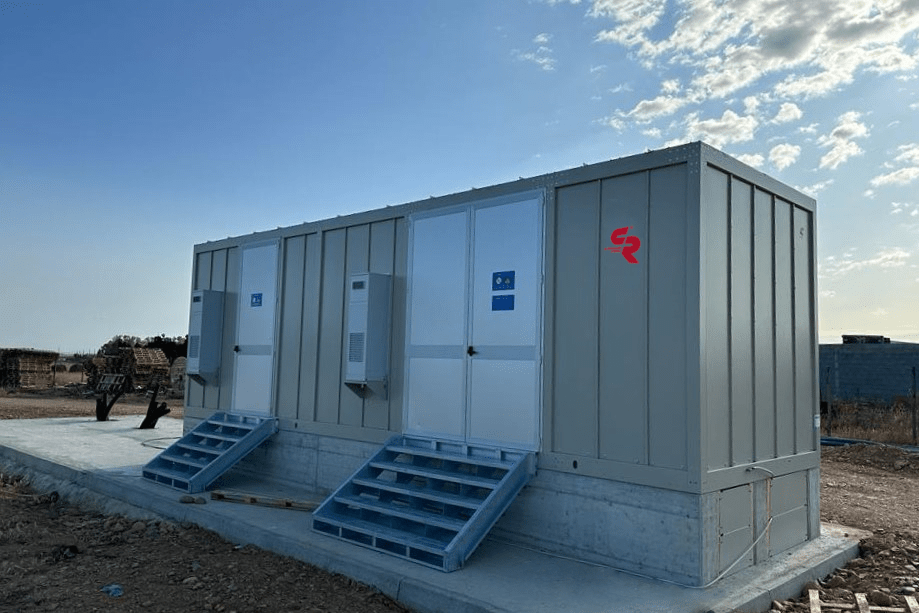

We have designed, manufactured and installed an eHouse equipped with n. 7 medium voltage ATR cubicles 36kV 1250A 25kA, a dry type auxiliary transformer, a euro SDS low voltage switchboard, and a euro P&C protection and control panel for the realisation of the new HV substation for direct connection to TERNA's High Voltage grid.
In addition, the project also includes the design, construction and commissioning of n. 4 transformation cabins each containing n. 4 medium voltage ATR cubicles 36kV 1250A 25kA, a euro SDS low voltage switchboard and a dry type auxiliary transformer.
The entire plant is monitored using the Copa Data SCADA system with integrated inverter monitoring, custumized by our automation engineering team.
