Matrix BESS system 500 MW / 1 GWh
Scotland
Country
Year
Description
Proud to contribute to the Matrix BESS project, in Eccles (Scotland), which is one of the largest battery energy storage developments in the UK, supporting the country's transition towards a more flexible and resilient power grid.

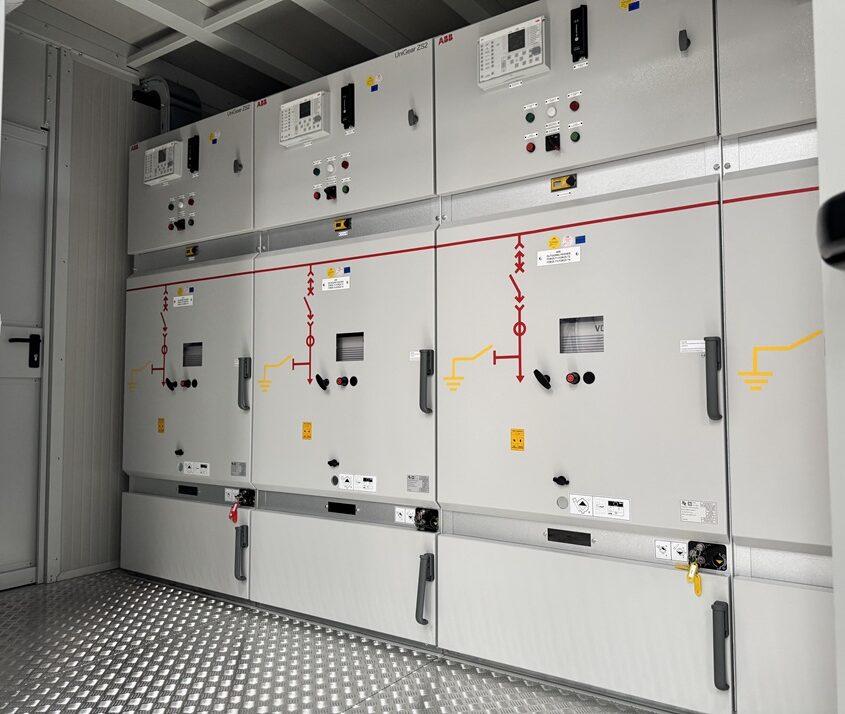

We have designed and manufactured n. 4 MV Switchrooms and 1 TSO Control Room to support critical grid infrastructure (we are now delivering 2 out of these 5 eHouses). The cabinets are equipped with:
- MV air insulated switchgear, licensed ABB Unigear 36kV, 3150A, 31.5kA switchgear (11 panels)
- LV switchboard and Patch panels
- Euro Protection & Control panel
- HVAC system
- Fire detection system
- UPS & rectifier
- Auxiliary equipment: 4G antenna, Weather station, GPS and SWICOM
