MV E-House 20kV for photovoltaic plant
Cipollaretta (Italy)
Country
Year
Location
Solutions
Products
Description

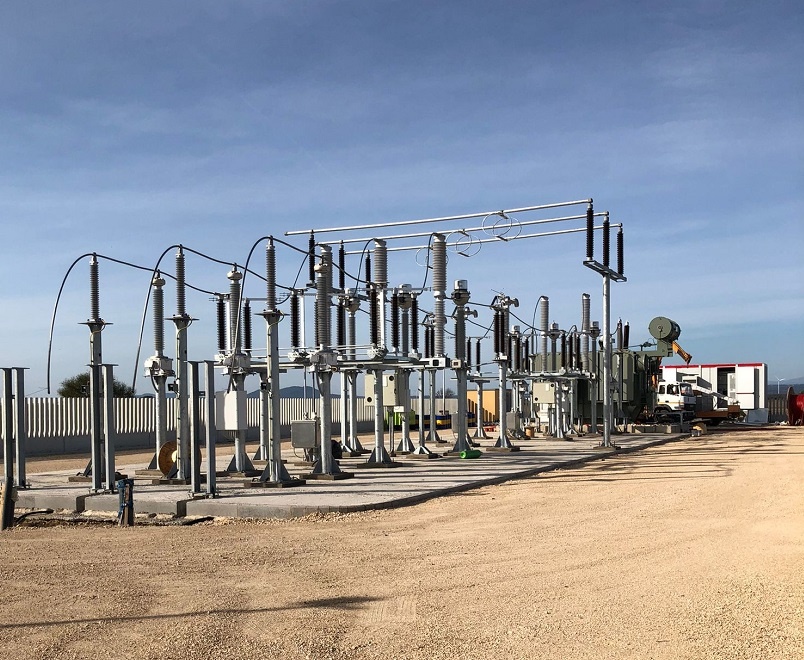

Design and construction of an E-House, for the Alzo electrical substation, carried out by our Sister Company C.R. Project Service. It is connected to the largest photovoltaic system in the Viterbo area and occupies 101 hectares in the Cipollaretta area.
The photovoltaic system has a power of 89.5 MWp and is connected to the national grid.
Our compact electrical substation STC-Box is equipped with:

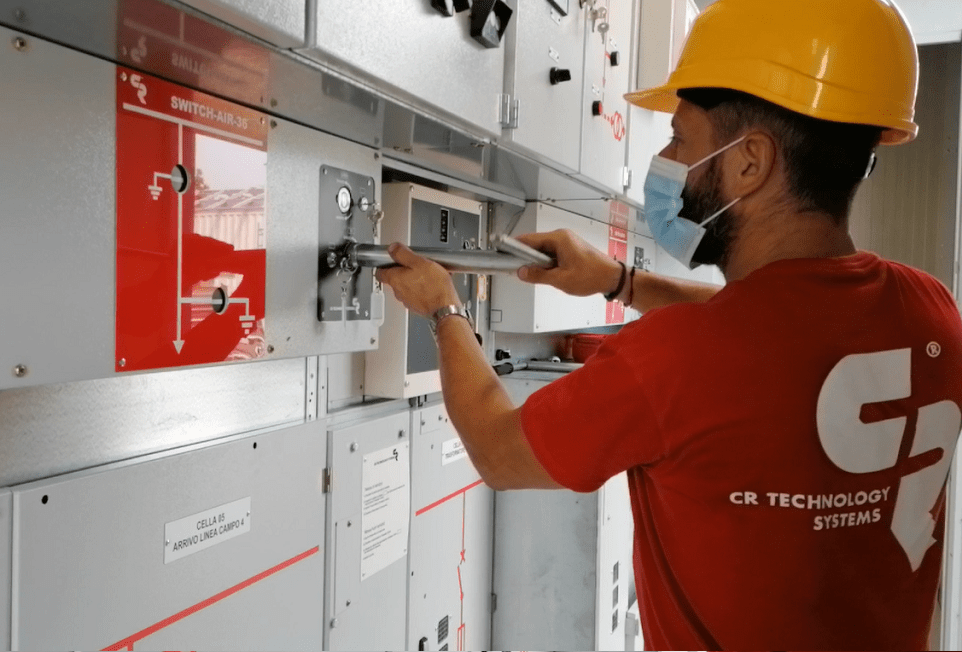

- N. 7 medium-voltage (MT) air-insulated (AIS) cubicles ATR 20kV 2500A 25kA

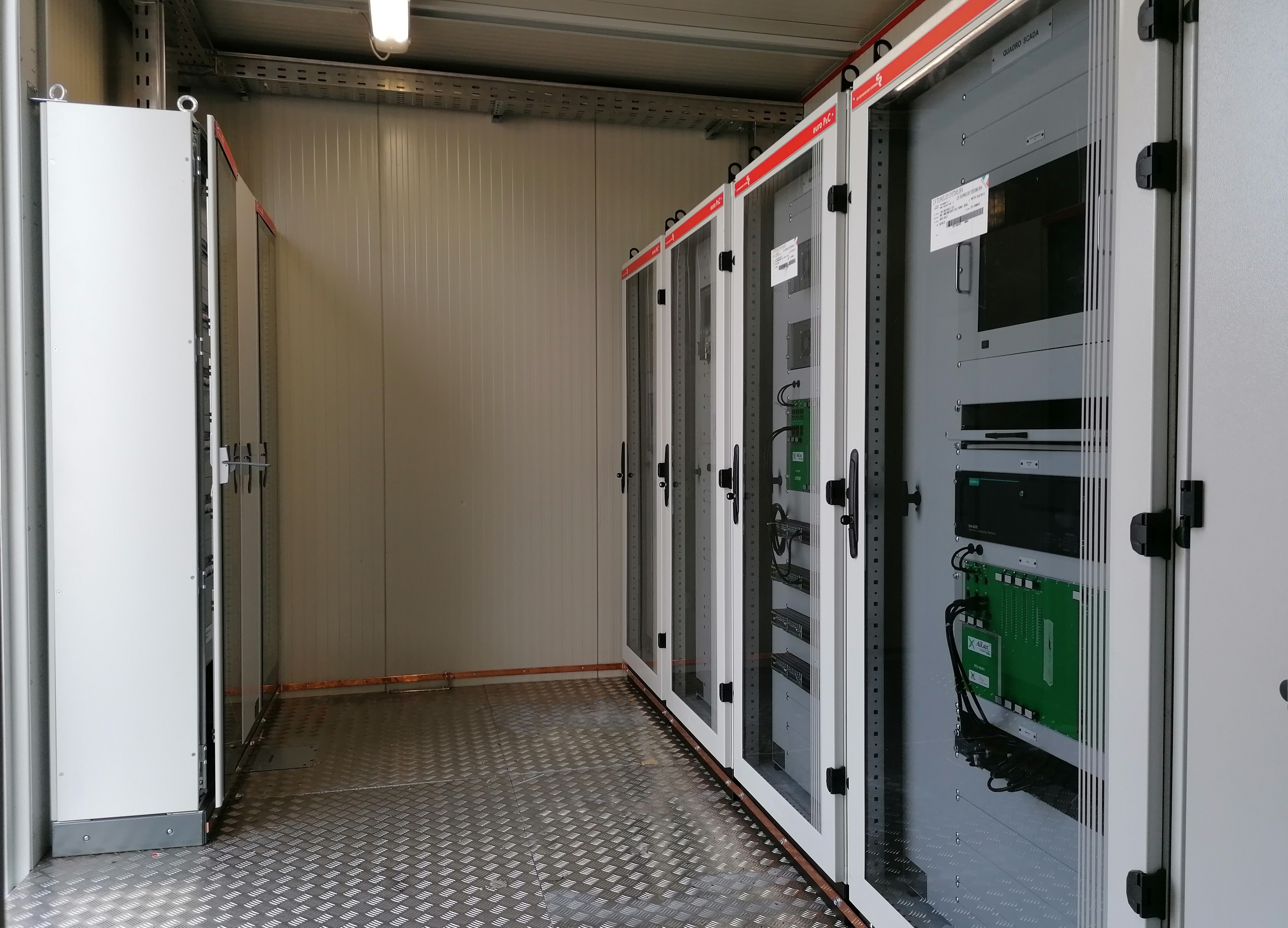

- Low-voltage panels (LV)
- Protection panels
- SCADA system
- Auxiliary transformer
- HVAC systems
- Auxiliary equipment
