eHouse for BESS in Serramanna station

Cagliari (Italy)

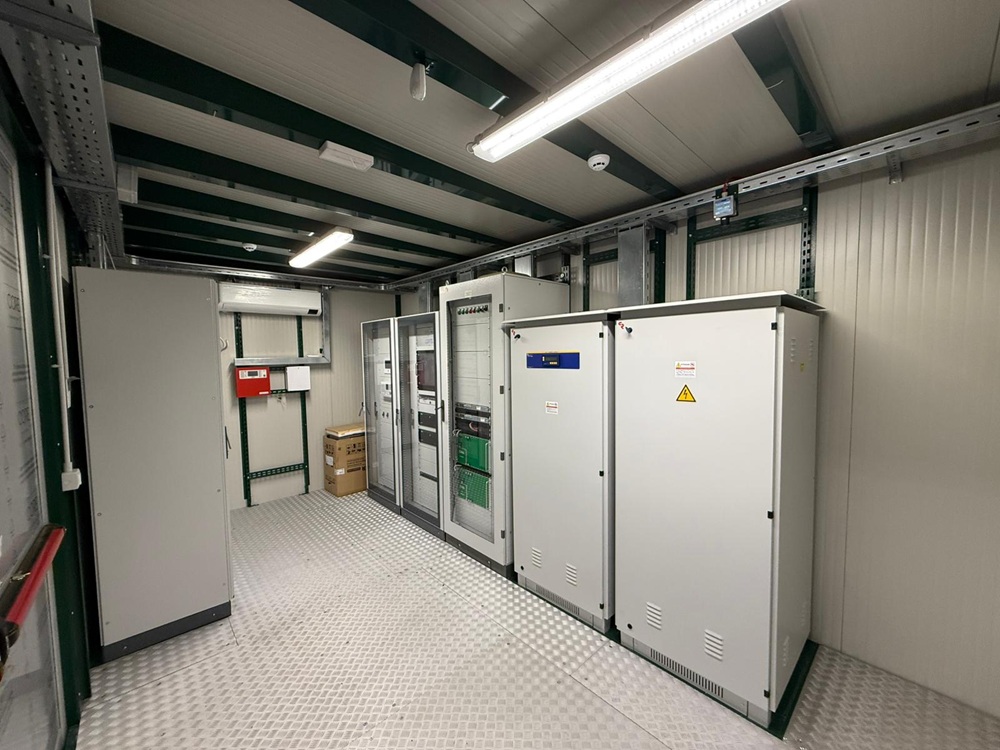

Low voltage- LV room - EHouse switching station

eHouse switching station for Cagliari Sardinia.

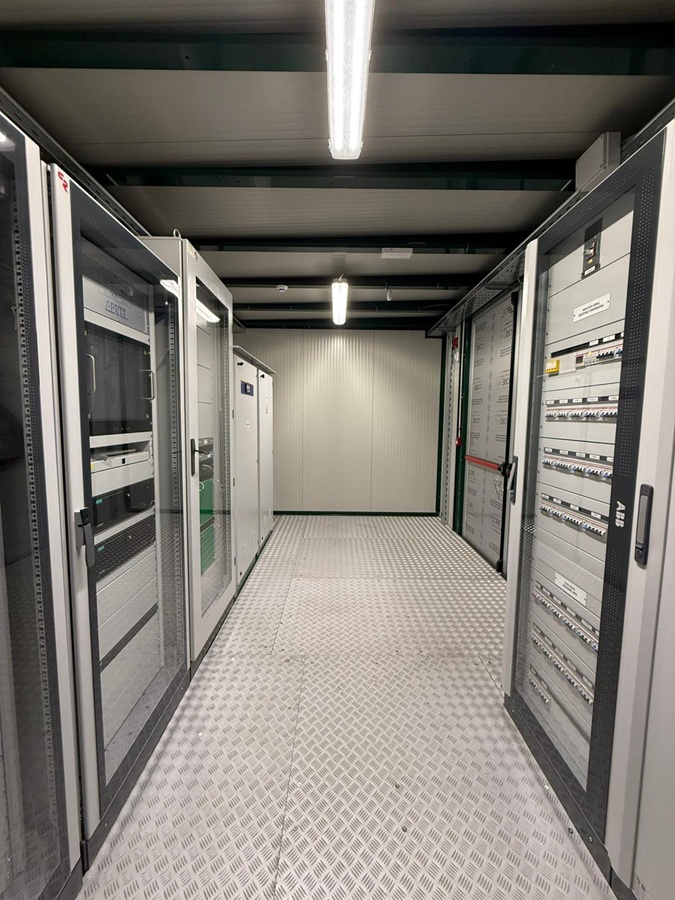

Low voltage- LV room protection and control panels of an EHouse switching station

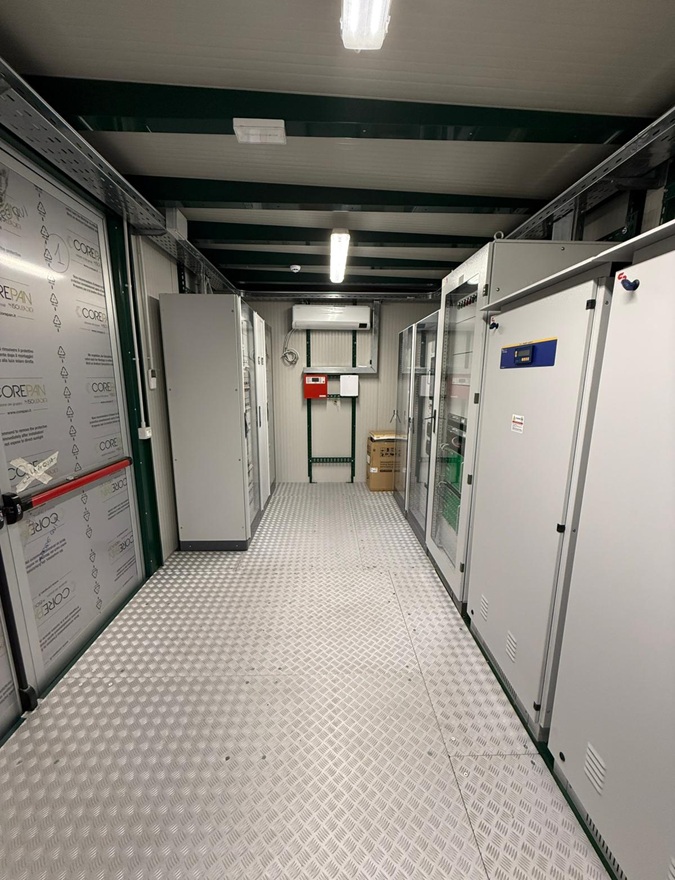

switching station CR Technology Systems Spa

Country

Year

2025

Location

Cagliari

Solutions

Products

Description

We have designed and manufactured a switchroom that will manage the power distribution from a 40MW photovoltaic plant and a 17MW BESS system on a surface of 51 hectares at Serramanna station in Cagliari.

This unit is equipped with:

MV switchgear ATR 30kV 1250A 25kA(1s)
LV switchboard Euro-SDS
SCADA panel
Firefighting system & HVAC

The SCADA system, UPDM and HV protection panels has been provided and configured in collaboration with our trusted partner Servi6 and integrated and testes in our facility, ready to be shipped on site in plug-in design configuration.
The plant will have a total capacity of 38.79 MWp, divided into two subfields equipped with single-axis tracking structures. The project includes integration with a 17 MW electrochemical storage system, which will help stabilize production and optimize grid injection. Overall, the maximum expected injection into the National Transmission Grid (RTN) will be 33MW.
