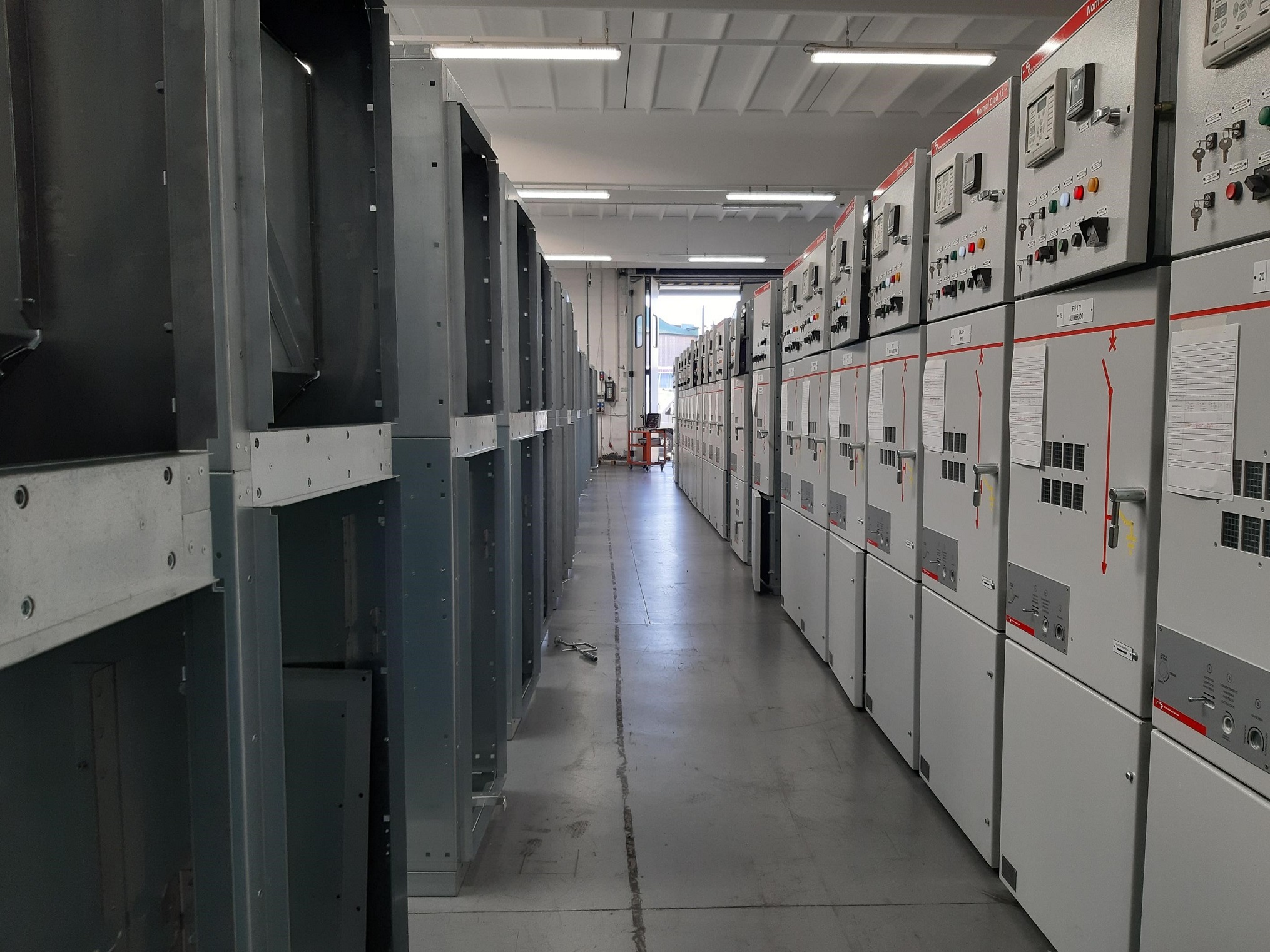

Switchgear MV AIS – Normal Clad

Medium Voltage AIS Metal Clad Switchgear - NORMAL CLAD - Special features up to IP65. Air Insulated (AIS) switchgear, fitted with metallic segregated compartments and withdrawable main components (circuit breaker, voltage transformers, protection relays). It is designed for primary distribution grids and can be supplied as standard or Internal Arc-Classified IAC AFLR. For outdoor use (mines, Oil & Gas) can be design in special features with a protection degree up to Ingress Protection IP 65 and configuration Duplex,Double Busbars Systems.

Technical features
  • Protection degree from IP4X for indoor applications, up to IP65 for outdoor applications

  • Simple or double busbar system, double top with two breakers and other customizable configurations available

  • Front access

  • Installation on base frame or on concrete basement

  • Operators’ safety during operations and maintenance according to Leg. Decree no. 81/2008 and legislation IEC 62271-200

  • Multi-brand air or SF6 gas insulated breakers applicated on withdrawable carriage

  • Withdrawable breakers and voltage transformers

  • Protection and control relay, and customized and settable digital counters

  • Standard or digital synoptic

  • Digital option to reduce wiring in order to maximize performance

  • SCADA system integration

  • Integration of thermal control system on bars and breakers, upon request

  • Integration of internal-arc protection systems, upon request

  • Integration of fast transfer systems, frequency and load-shedding control, upon request

Advantages
  • Tailor-made product

  • Interchangeable breakers

  • Remote control

  • Easy ordinary and extraordinary maintenance, thanks to front accessibility

  • High safety level for the operators involved

  • Short construction and delivery times

Applications
  • Oil & gas

  • Railway sector

  • Naval sector (installations)

  • Smart grid

  • Utility on primary distribution grids

  • Mobile substations

  • Photovoltaic plants

  • Wind power stations

  • Hydroelectric power stations

  • Other electric energy generation plants

Documents
Dimension
Link Download
MV Normal Clad switchgear
1.55 MB

Data Sheet Normal Clad

    • Rated Voltage

    • kV

    • 12

    • 17,5

    • 24

    • 36

    • 40,5

    • Rated Voltage insulation

    • kV (1min)

    • 28

    • 38

    • 50

    • 70

    • 85

    • Impulse Test Voltage (BIL)

    • kV

    • 75

    • 95

    • 125

    • 170

    • 200

    • Main busbar rated current

    • A

    • Up to
      4000

    • Up to
      4000

    • Up to
      3600

    • Up to
      3150

    • Up to
      2500

    • Main bars rated current

    • A

    • 1250

    • 2000

    • 2500

    • 3150

    • 3600

    • 4000

    • 1250

    • 2000

    • 2500

    • 3150

    • 3600

    • 4000

    • 1250

    • 2000

    • 2500

    • 3150

    • 1250

    • 2000

    • 2500

    • 3150

    • 1250

    • 2000

    • 2500

    • Short time rated current

    • kA (3s)

    • up to
      50

    • up to
      50

    • up to
      40

    • up to
      40

    • up to
      31.5

    • Rated frequency

    • Hz

    • 50-60

    • 50-60

    • 50-60

    • 50-60

    • 50-60

    • IP Protection degree

    • IP4X*

    • IP4X*

    • IP4X*

    • IP4X*

    • IP41

    • Loss of service continuity (LSC)

    • LSC2B

    • LSC2B

    • LSC2B

    • LSC2B

    • LSC2B

    • Arc-proof version IAC AFLR

    • kA (1s)

    • 25

    • 25

    • 25

    • 25

    • 25

Up to IP65, upon request

Up to IP65, upon request

Related projects to Switchgear MV AIS – Normal Clad

N. 5 substations 13.8kV and 34.5kV 54.8MVA

Jardines del Rey (Cuba)

The project has involved the implementation of n. 5 E-House compact substations, located in Jardines del Rey, a touristic strategical Cuban area nearby the airport and seaport.

Normal Clad switchgears 24kV IP65 for Mine

Yauyos (Perù)

The project has the aim to increase the electrical grid of a mine located in the province of Yauyos (Peru) and it has involved the design, construction and supply of n. 7 medium-voltage (MV) Normal Clad switchgear cubicles 24kV 630A 31.5kA and 17.5kV 1250A 31.5kA, with IP65 protection degree, an auxiliary transformer 12600/230V 10kA, materials and accessories necessary for the start-up of the plant.
