eHOUSE FOR SCOTTISH BESS SYSTEM

Rothienorman (Scotland)

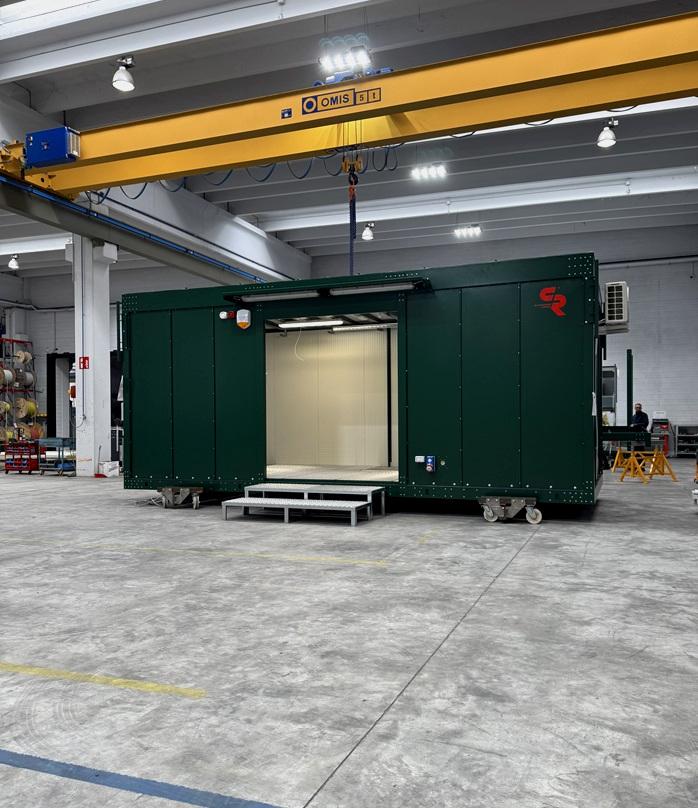

We have designed, manufactured and supplied an eHouse 33kV and control room destined to a Battery Energy Storage System (BESS) in Rothienorman, Scotland.

Country

United Kingdom

Year

2025

Location

Rothienorman

Solutions

Products

Description

We have designed, manufactured and supplied an eHouse 33kV and control room destined to a Battery Energy Storage System (BESS) in Rothienorman, Scotland.

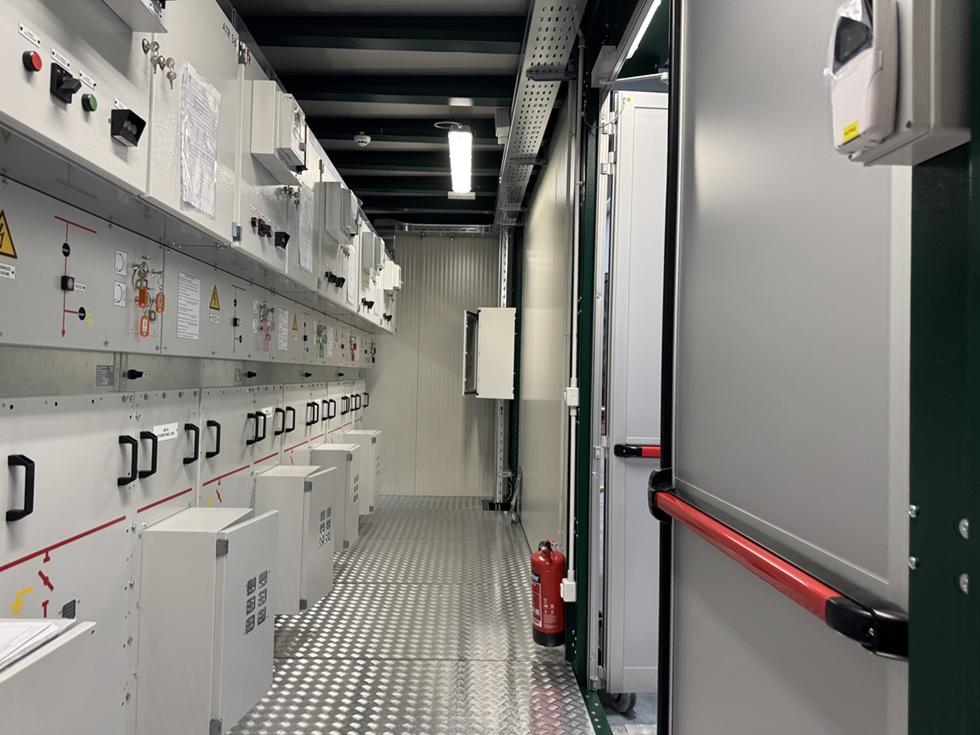

Switchroom 33kV, STC-Box, equipped mainly with:

ATR 36kV 1250A 25kA(1s), nr. 7 cubicles
Firefighting system
4G antenna + weather station, GPS, Swicom, RTU
Marshalling panel

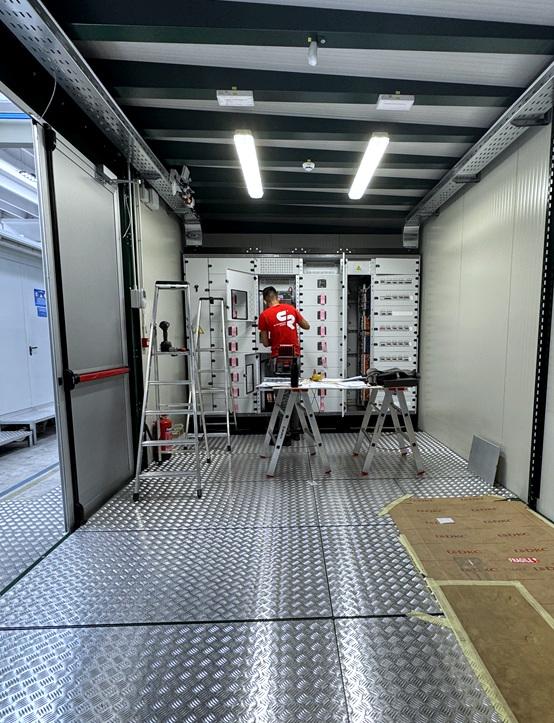

And a control room, equipped with:

UPS and DC System
Power Center LV Switchboard
Marshalling Panel/interface Panel
AUX LV Switchboard
Firefighting system

eHouses are modular solutions to bring electricity easily and quickly. It’s a smart way to power cities with sustainable energy.
