Electrical substation
High-voltage (HV) and medium-voltage (MV) electrical substations are a complete turn-key solution, designed tailor-made for our Customer, thanks to our know-how and worldwide experience we can create a perfect solution for each type of request and propose engineering solutions for the generation, transmission and distribution of electricity. We take the responsibility for whole project, from the analysis of the request to study the best solution up to commissioning and hand-over to the Customer.
![Power transformer for HV substation](https://www.crtsgroup.com/wp-content/uploads/2019/09/Transformer_Varadero_1-1-e1683123651674.jpg)
![electrical substation Cuba](https://www.crtsgroup.com/wp-content/uploads/2019/09/Transformer_Varadero_3.jpg)

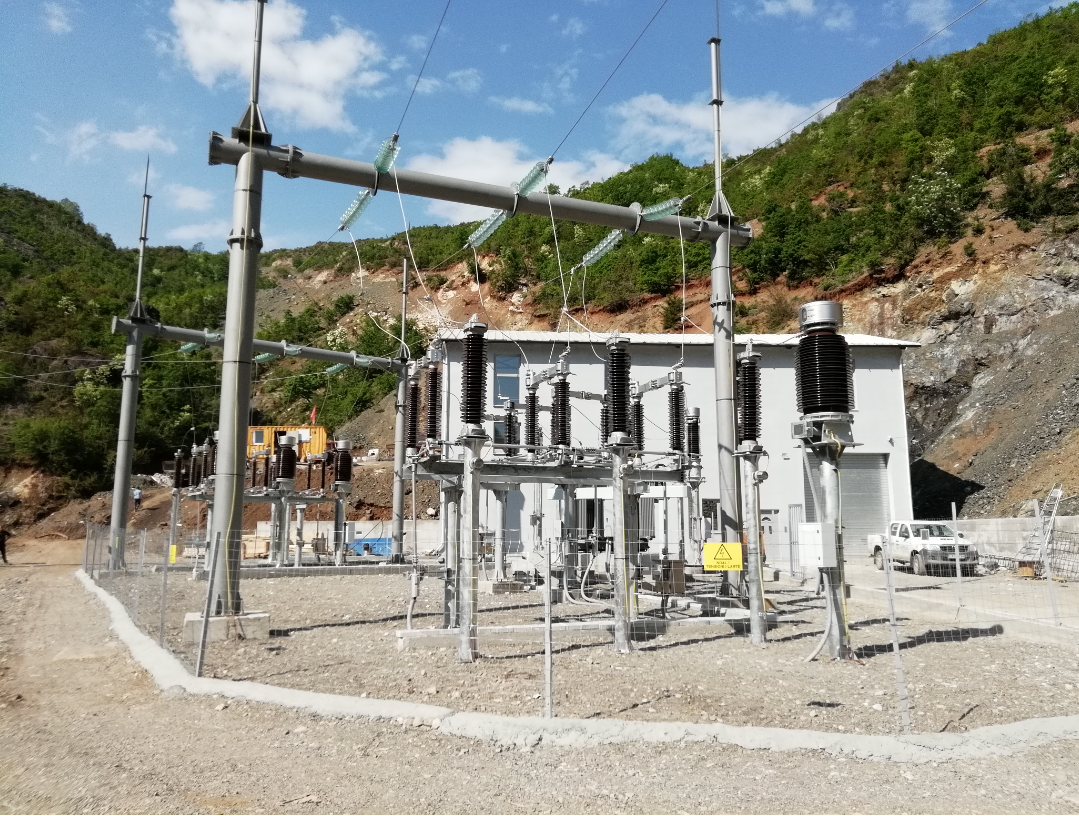

![HV electrical substation for Albania, Europe](https://www.crtsgroup.com/wp-content/uploads/2019/09/Solution_HV_Substation_Corizza-4-e1684243748688.png)
![HV Electrical substation](https://www.crtsgroup.com/wp-content/uploads/2019/09/substation-e1683123715700.jpg)
Technical features
Transformers
Busbar distribution system
Earthing system
Electrical protection (circuit breakers, protection against continuous current etc.)
Auxiliary services
Insulators
Trestles
Disconnectors
Advantages
Reduction of insulation cost for switchgear and other electrical equipment
Future extension of the scheme is easier whenever needed
Easier identification of possible breakdown, due to its outdoor position
Applications
Oil & gas
Railway sector
Smart grid
Utility on primary distribution grids
Photovoltaic plants
Wind power stations
Hydroelectric power stations
Other electric energy generation plants
Related projects to Electrical substation
MV Substation 13.8kV
Cayo Santa Maria (Cuba)
Design, construction and commissioning of a medium-voltage (MV) indoor electrical substation 13,8kV 2000A 25kA containing n. 22 air-insulated (AIS) medium-voltage (MV) Normal Clad switchgear cubicles, a low-voltage (LV) switchboard Euro-SDS 380/220V 60Hz, SCADA system for the control of the plant.
HV/MV indoor Substation 110/13.8kV 25MVA
Varadero (Cuba)
This project has the peculiarity of being installed inside a building specifically designed in respect of the surrounding environment, notoriously recognized for its touristic value.
