Nr 2 E-HOUSE 33kV SWITCHING STATION – BUMPER FOR BESS

Ilmer, Princess Risborough (UK)

Country

United Kingdom

Year

2023

Description

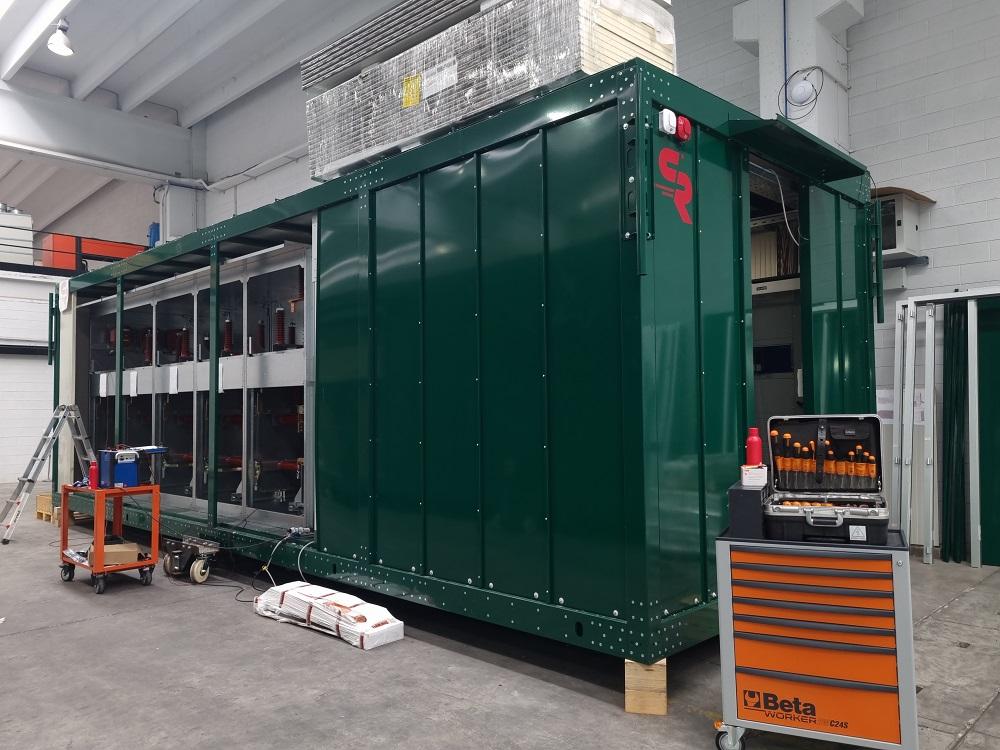

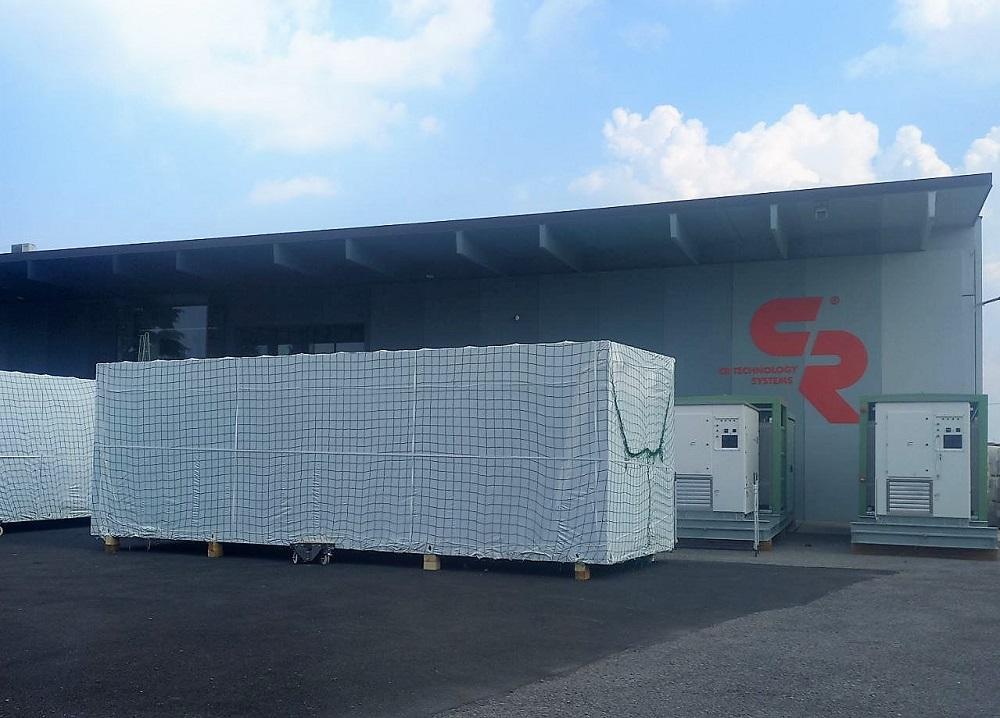

We are currently engaged in a new project, involving the construction of two MV Switching stations for an upcoming Battery Energy Storage System (BESS) initiative. These stations will be situated in Severalles Farm, Ilmer, Princess Risborough, UK, supplying 100MWh as storage capacity.

Our E-Houses are meticulously designed and feature the following cutting-edge components:

  • Advanced SCADA Panel
  • High-Voltage (HV) Protection Panels Euro P&C

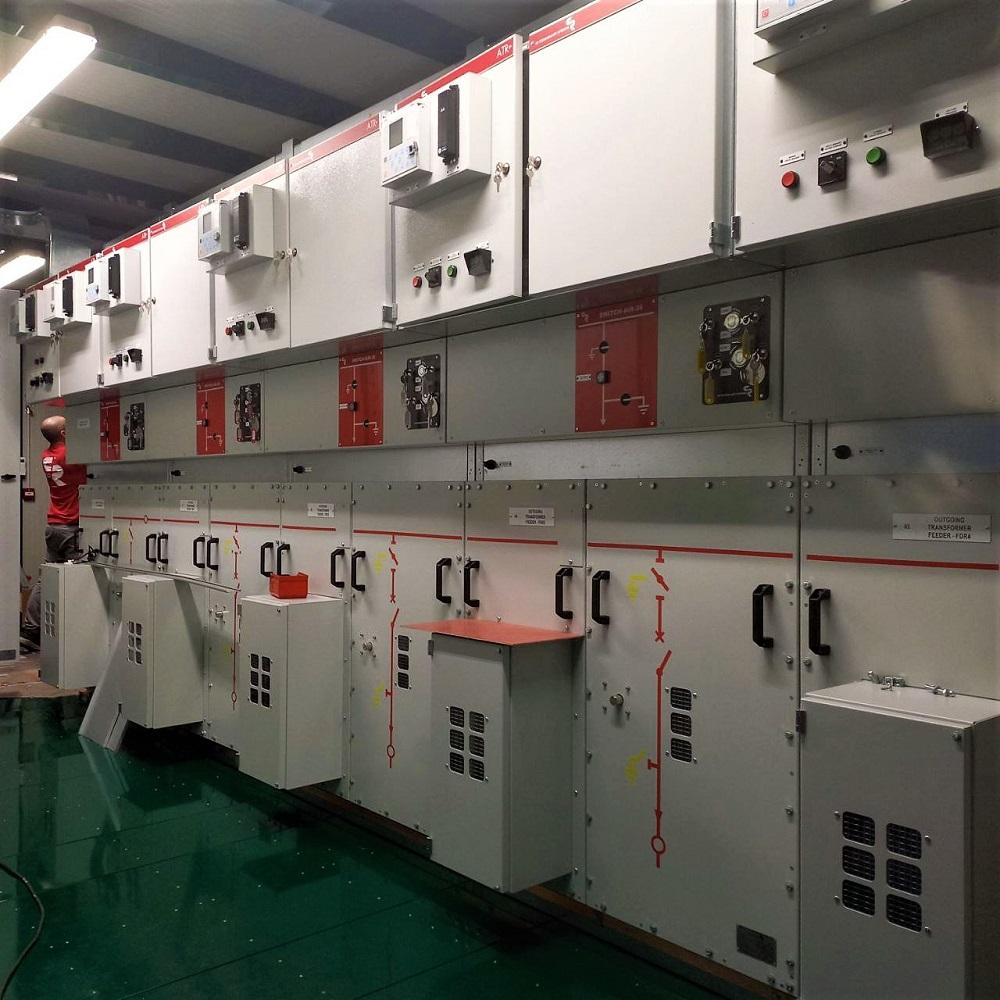

  • MV Switchgear ATR 36kV 1250A 20kA(1s).
  • Low-Voltage (LV) Switchboard: Euro SDS 400/230V providing efficient power distribution at 80A and 6kAx1'.

Additionally, an internal DC system 110 Vdc is realized for the MV Switchroom protection and services.
  • HVAC System
  • Auxiliary Equipment

With these advanced components and meticulous attention to detail, we aim to deliver a top-tier MV Switching station project for BESS endeavor in the UK.
