Medium-Voltage (MV) Switchgears 24kV 2000A 16kA for Photovoltaic Plants

Montalto di Castro (Italy)

Description

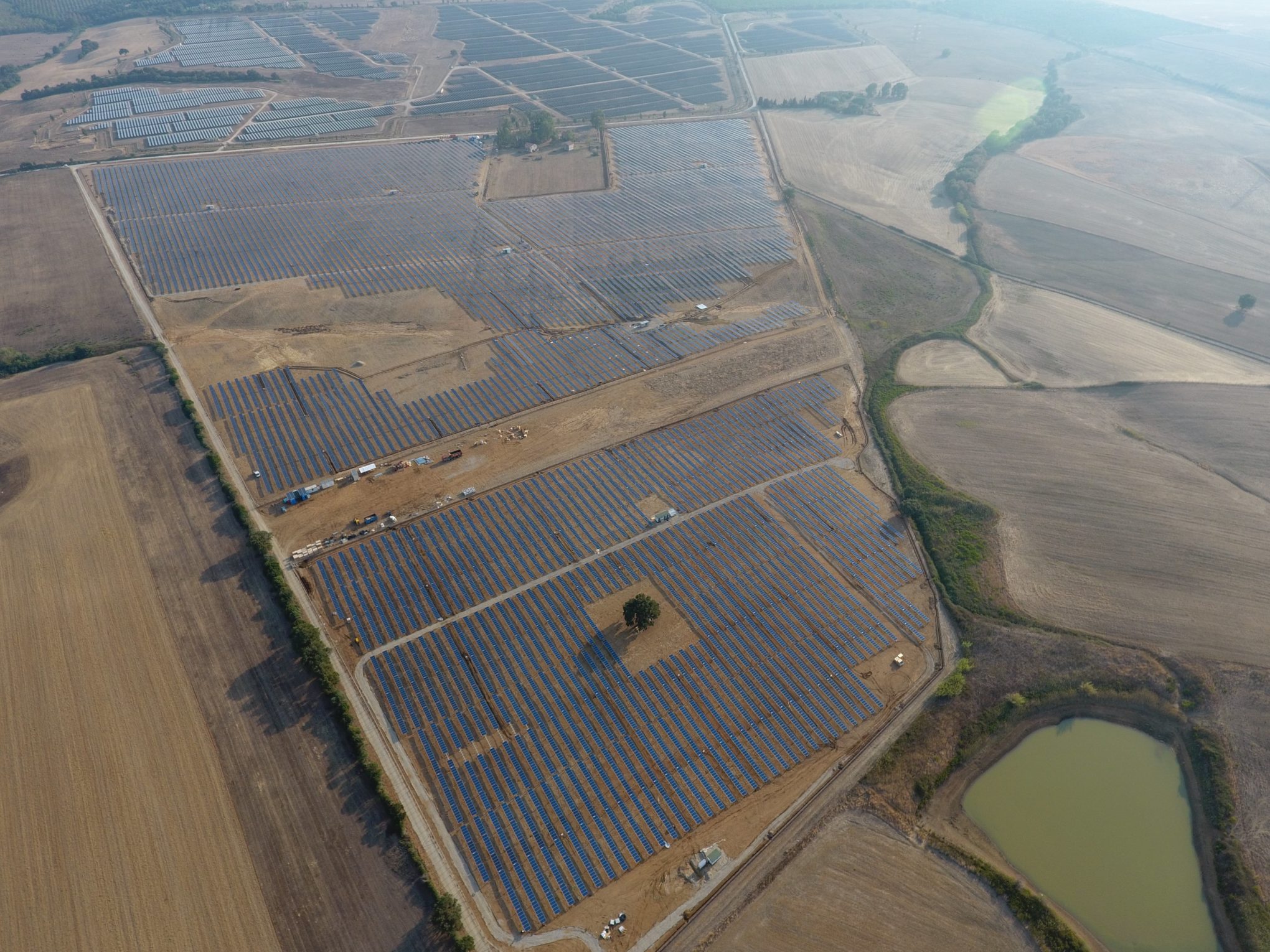

The project was carried out in Montalto di Castro, in Viterbo, a well-known location as one of the largest solar photovoltaic power plant in Italy.

Installation of n. 2 air-insulated (AIS) medium-voltage metal clad panels 20kV/2000A/16kA and n. 5 air-insulated medium-voltage metal-enclosed ATR switchgears 24kV 2000A 16kA and a medium-voltage cable ARE4H5E 12/20 1x240 for a centralized supply of five photovoltaic plants in this area (Vivaldi, Verdi, Puccini, Rossini and Paganini).
