ELECTRICAL EQUIPMENT FOR PHOTOVOLTAIC PLANTS

Camagüey, Mayajigua (Cuba)

Description

The project is addressed to n. 2 photovoltaic plants: Camaguey and Mayajigua with a total power of 5 MWp.

For each of the two photovoltaic plant, the project has included the study, realization and supply of:

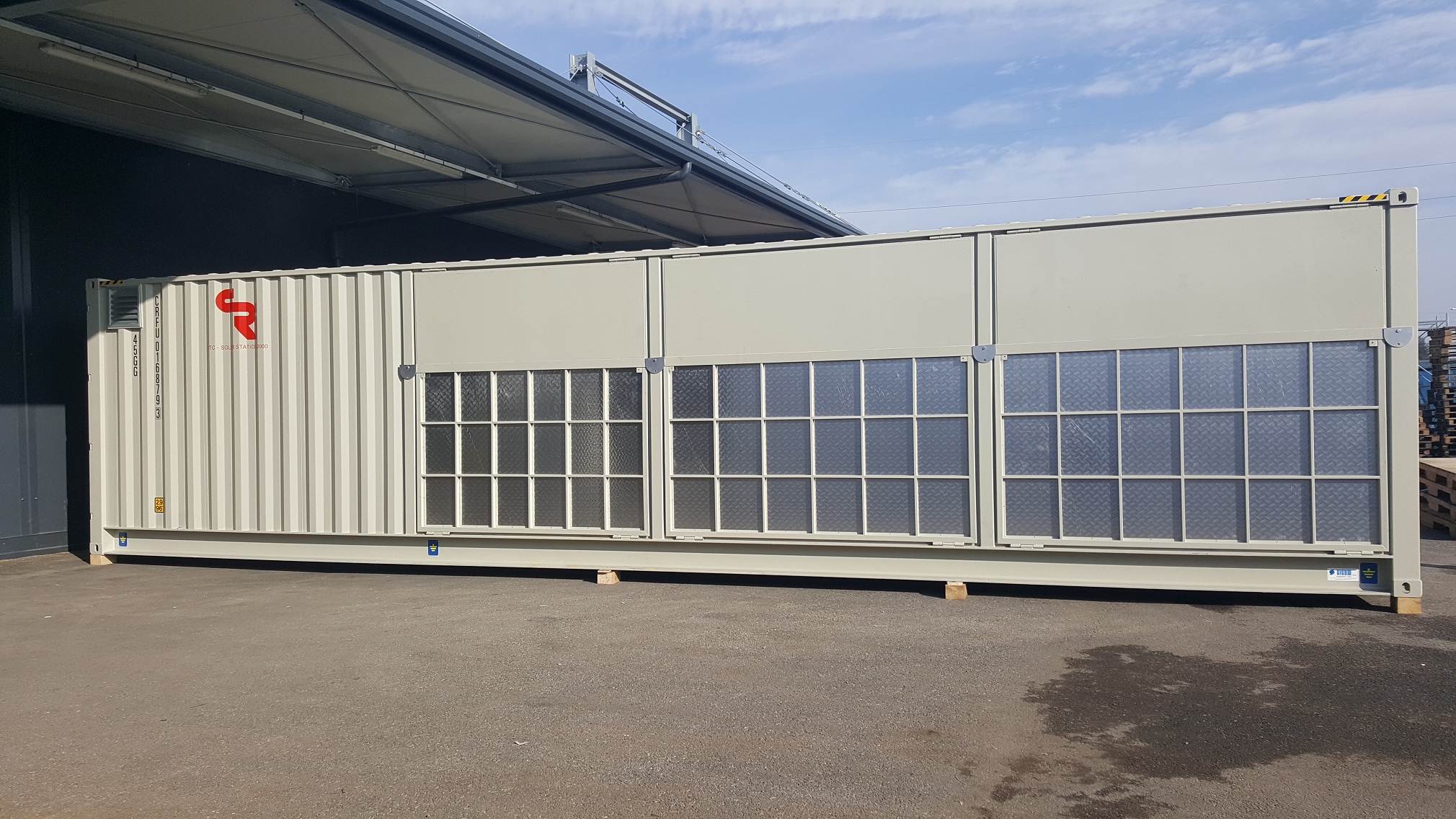

  • ISO Containers 2000-40
  • Medium-Voltage (MV) switchgears ATR-Ring 13.8kV 630A 16kA and 34.5kV 630A 16kA
  • Low-voltage (LV) P&C and SDS switchboard 220/127V 60Hz

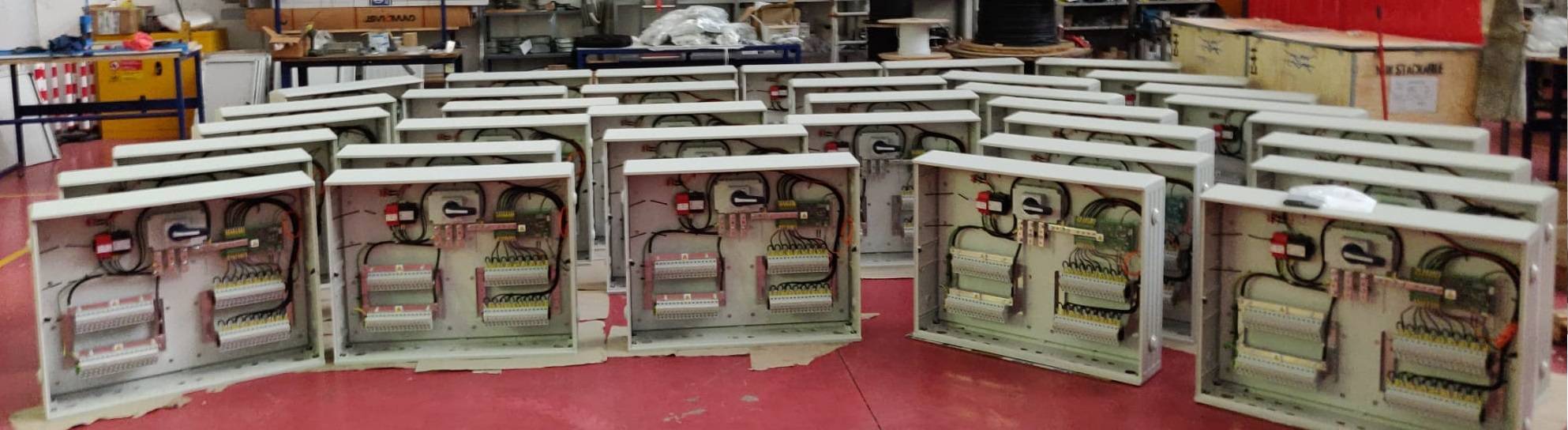

  • String box 1kV DC/280A
  • Firefighting system
  • Transformers
  • Protection relays
